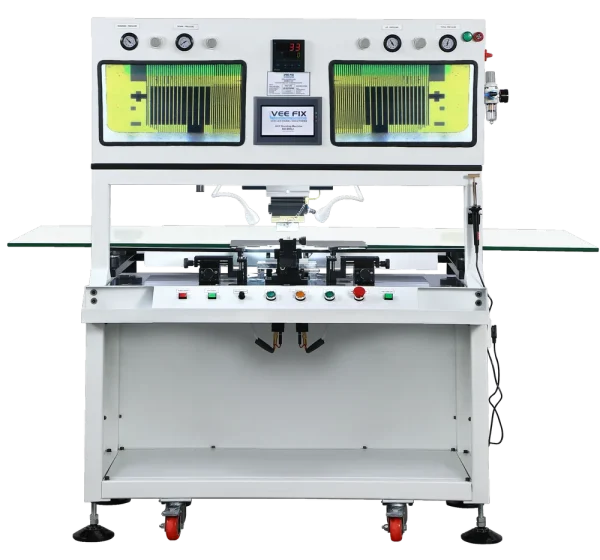

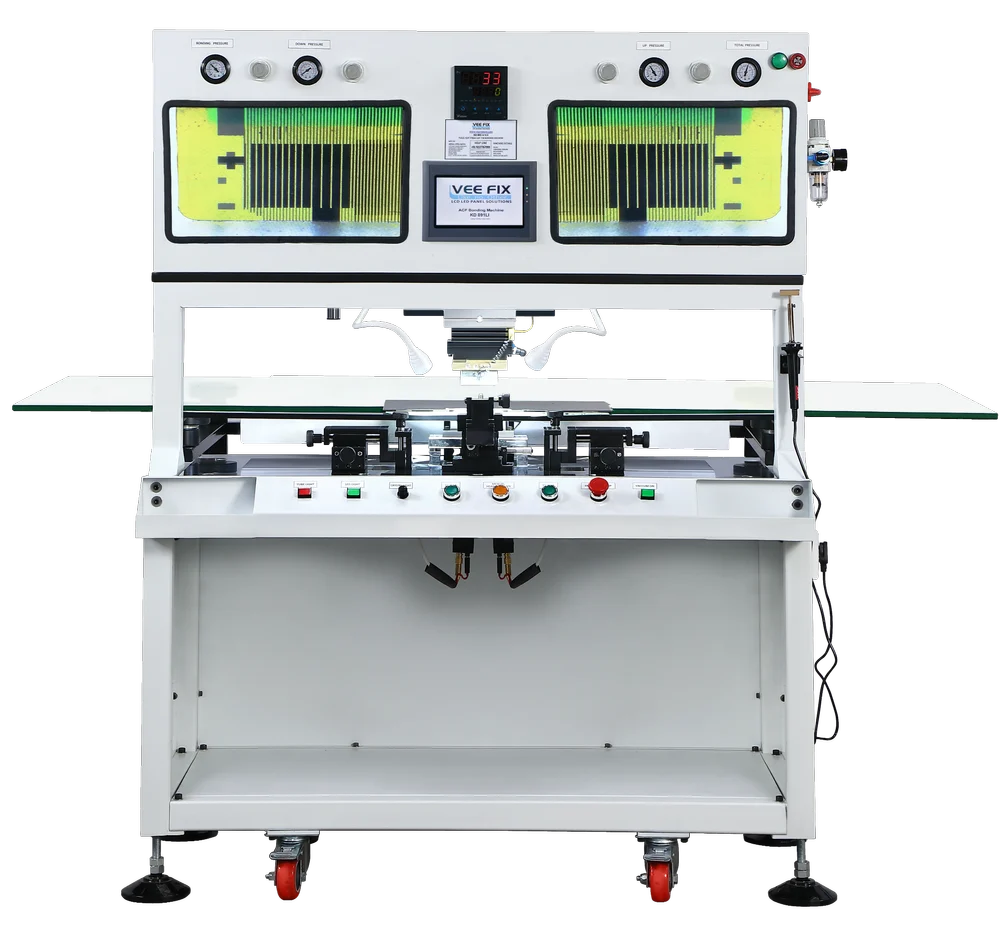

Acf Pulse Heat Bonding Machine

456,306.00৳

In stock

Capacity
50 bonding/day
PID Temp Control
100 – 300 DegreeC ( +/- 1 DegreeC Precision)
Bonding Head Material
Titanium Alloy Grade
Brand
Veefix
Machine Size & Weight
1850 X 1260 X 1520 mm (L*W*H) / 220Kg
LCD Panel reparable Size & Type
12″ to 85″ / Up to Ultra HD 4K / 8k
Cylinder Type
Double Bore Slide Table
Peak Power & Voltage
1200 W / Single phases AC 230 V
Display
Two 18.5″ Wide Screen
COF Bonding machine or LCD LED TV Panel repair ACF COF TAB IC Bonding Machine is designed for LCD LED TV repair, which can solve the problem of ACF COF TAB faults, the function of ACF COF Bonding Machine is to replace, bond and re-bond new old  COF TAB ic on TFT LCD LED tv Panel glass and PCB.
